Mastering Technical Drawings: A Comprehensive Guide for Product Owners
Technical drawings are the backbone of manufacturing and engineering, providing critical information about products, parts and processes. However, interpreting these drawings can be challenging, especially when dealing with complex standards, symbols, and tolerances. At Werk24, we aim to bridge the gap between technical complexity and practical application, empowering product owners and developers to make informed decisions.
In this article, we’ll explore the essential elements of technical drawings, their business impact, and how Werk24 can help you streamline your workflow.
Why Technical Drawings Matter
Technical drawings are more than just blueprints; they are a universal language for communicating design intent. For product owners, they provide insights into manufacturability, costs, and potential risks. For developers, they offer a foundation for building tools that extract and process critical information.
Ignoring key aspects of technical drawings can lead to costly mistakes, such as unusable parts, assembly issues, or increased production costs. That’s why understanding the nuances of these drawings is essential for success.
Key Elements of Technical Drawings
Understanding the key elements of technical drawings is crucial for avoiding errors and optimizing workflows. Below, we break down the most important aspects in detail:
Projection Methods
Projection methods determine how 3D objects are represented in 2D drawings. Different markets use different standards. Misinterpreting these methods can result in mirrored or unusable parts, leading to costly rework. Always ensure that the projection method is clearly understood and correctly applied. Learn more about projection methids in our Knowldeg base.
First Angle Projection Method
Primarily used in the US - Viewer looking at the 3-D object and projects the view on a plane behind the object.
Third Angle Projection Method
Primarily used in the EU - Viewer looking at the 3-D object and projects the view on a plane in front of the object.
Measures
Measures define the ideal dimensions of a part and the maximum allowed deviation before the part becomes no longer fit for purpose. For example, a hole with a diameter of 10 mm might have a tolerance of ±0.1 mm. Ignoring tolerances can result in parts that appear correct but fail to function properly, such as two components that don’t fit together. Understanding and applying tolerances is critical for ensuring proper assembly and functionality.
A multitude of different measurement and toleration systems exist. At Werk24, we interpret majority of these and return them in a consistent format.
Threads
Threads are used to join parts together and include details such as diameter, pitch, angle, and direction (e.g., left-hand or right-hand threads). Different standards, such as ISO, UNC, or BSP, are used globally. Misinterpreting thread specifications can result in unfulfillable orders or production delays due to the lack of appropriate tools. Additionally, some use cases may require distinguishing between internal and external threads, adding another layer of complexity.
Geometric Dimensioning and Tolerancing (GD&T)
GD&T is a system that defines tolerances in 3D space, specifying how far features like holes, surfaces, or edges can deviate from their ideal positions. For example, GD&T might define how much the centers of two bores can differ in alignment. Drawings with tight GD&T tolerances are often more expensive to manufacture, as they require higher precision. Ignoring GD&T can lead to parts that fail to meet functional requirements or increase production costs.

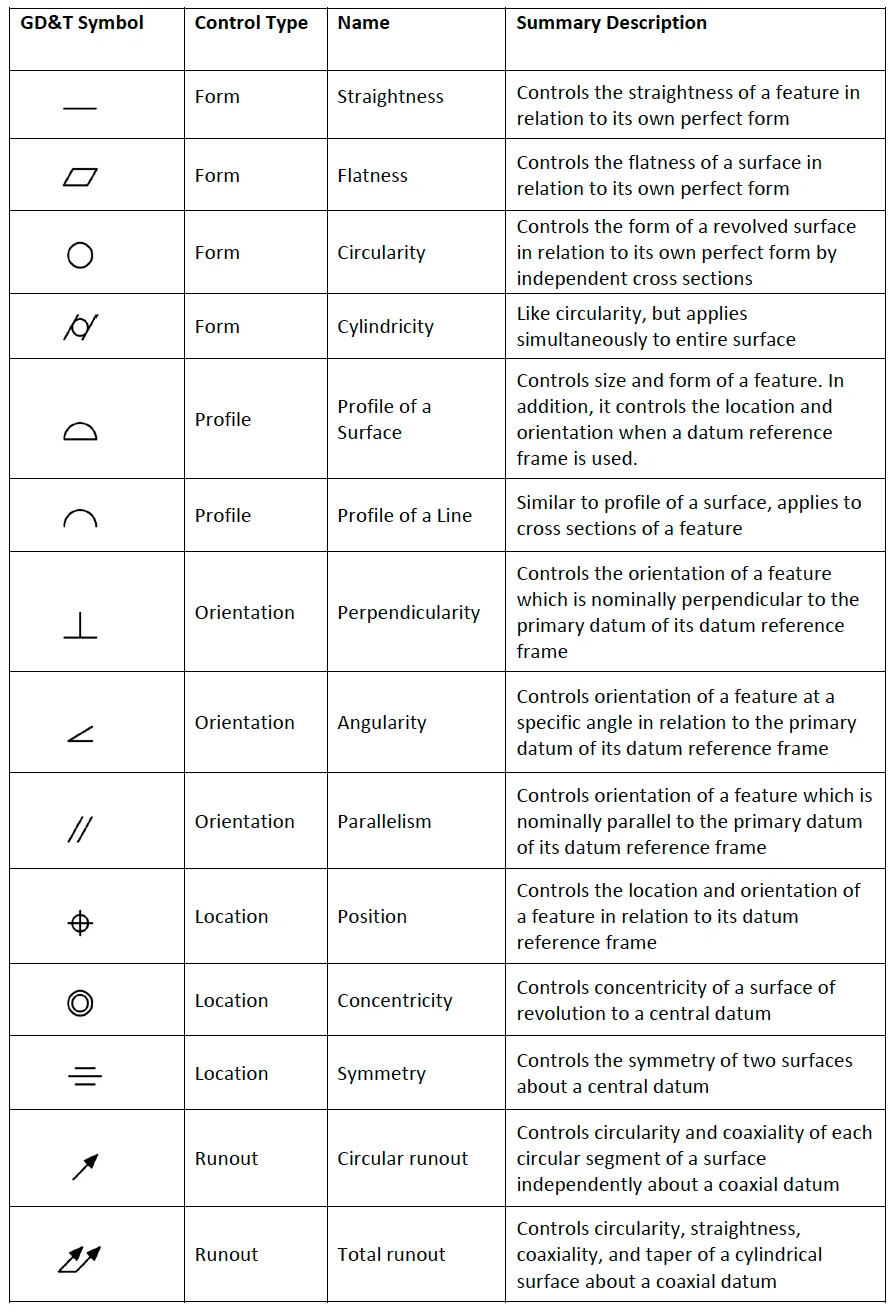

While the table below summarizes the different types of GD&T, further details can be found in our knowledge base:
Edges and Surface Roughness
Edges in technical drawings often specify whether sharp edges are acceptable or if they require rounding or chamfering. Sharp edges can cause stress concentrations or safety issues, while rounded edges improve mechanical strength and usability.
Surface roughness, on the other hand, defines the smoothness of a part’s surface. Achieving smoother surfaces often requires slower machining speeds, which can increase production time and cost. Ignoring these details can lead to inaccurate quotes or functional issues.
Symbols and Notes
Symbols in technical drawings are graphical representations of features like welds, tolerances, or surface finish. They provide critical information about the part’s design and manufacturing requirements.
Notes, on the other hand, include additional instructions or conventions unique to the drawing. These can be divided into sectional notes (specific to a part of the drawing) and canvas notes (applicable to the entire drawing). Misinterpreting symbols or notes can lead to production errors or miscommunication.
Title Block and Metadata

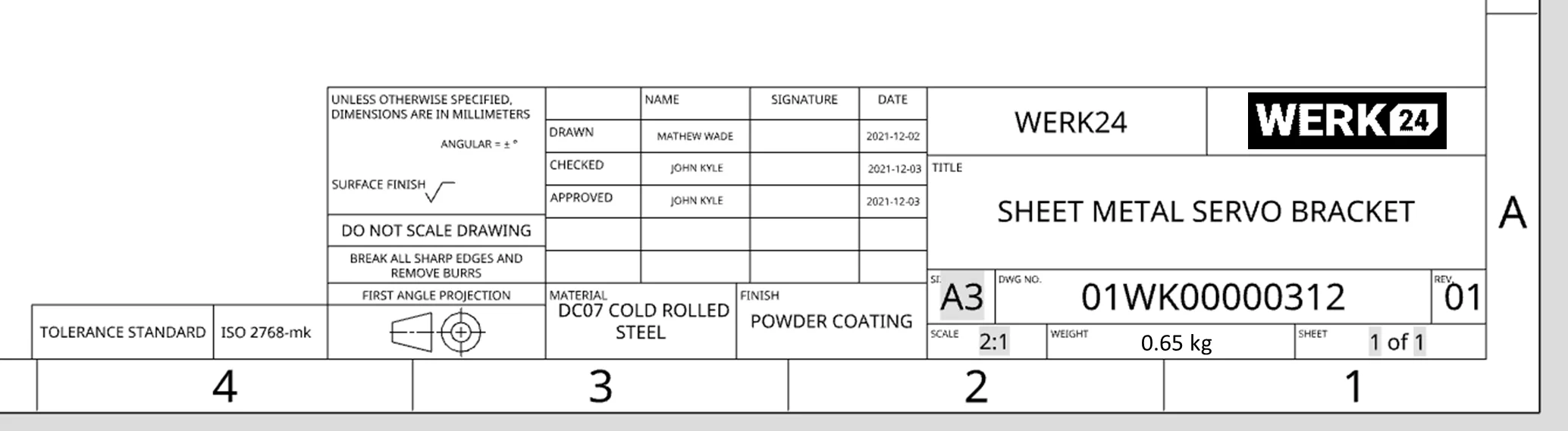

The title block is a section of the drawing that contains metadata such as the drawing number, revision level, author, and date. This information is essential for traceability and version control. For example, the title block can help ensure that the correct version of a drawing is used during production, reducing the risk of errors.
Processes and Bends
Processes describe the steps required to produce a part, which can be categorized into adding input materials, main processes and post processes. Understanding these processes is essential for achieving proper functioning of the part, ease of assembly, durability, and physical appearance, all of which eventually translates into optimized production workflows and high-quality outcomes.
Bend is a sheet metal part parameter that refers to the metal being shaped using various bending operations. Missing or misinterpreting bend details can lead to functional issues or increased costs.
N-Grades and Radii
N-Grades are one of the many ways of indicating roughnesses. They are needed for statistical analysis because they give an indication of the manufacturing complexity. For the actual production you need the Ra/Rz/Rt etc values. Hence, ignoring N-Grades in technical drawings can lead to confusion and errors in manufacturing, leading to higher production costs and delays.
Radii, on the other hand, describe the curvature of edges or surfaces. Adding radii to sharp corners can improve mechanical strength and reduce stress concentrations. Neglecting these details can result in part failure or increased production costs.
How Werk24 Simplifies Technical Drawings
At Werk24, we understand the challenges of interpreting technical drawings. Therefore, we have developed tools and resources to help you extract and process critical information with ease.
Our Knowledge Base provides an overview of key concepts. For a deeper dive into the technical aspects of our solutions, visit our Documentation where you’ll find detailed explanations, code examples, and integration guides. Thus, whether you’re a product owner looking to optimize workflows or a developer building tools for information extraction, Werk24 has you covered.
